Analisis de datos con las ultimas telemetrias.

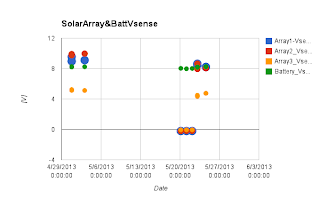

Grafico estado de batería
Toda la información en 1.cubebug.org

Cubebug-1

Cubebug-1 telemetria
Ultimos datos


Uptime: 4h45m30s, Mode: SURVIVAL

FreeHeapSize: 13320 bytes [0x00003408]

Battery: 8,25 V (low_voltage count: 0)

Array X: 8,07 V, [+] 0 mA, [-] 0 mA

Array Y: 8,21 V, [+] 0 mA, [-] 412,98 mA

Array Z: 4,75 V, [+] 63,60 mA, [-] 57,08 mA

Bus 3v3: 247,72 mA, 5v: 364,43 mA

Temp Battery: 10,97 C, Radio: 17,47 C

Last Seen Seq: 3, Next Beacon Enable: 0

Antenna count: 16, deploy: false [0x10]

Magnetometer (X, Y, Z): (310,200, -306,400, -276,600) [milligauss]

Gyroscope (X, Y, Z): (-0,076, -0,832, -0,167) [degrees per second]

IMU 3000 Temp (C): 10,87

Payload length: 0
